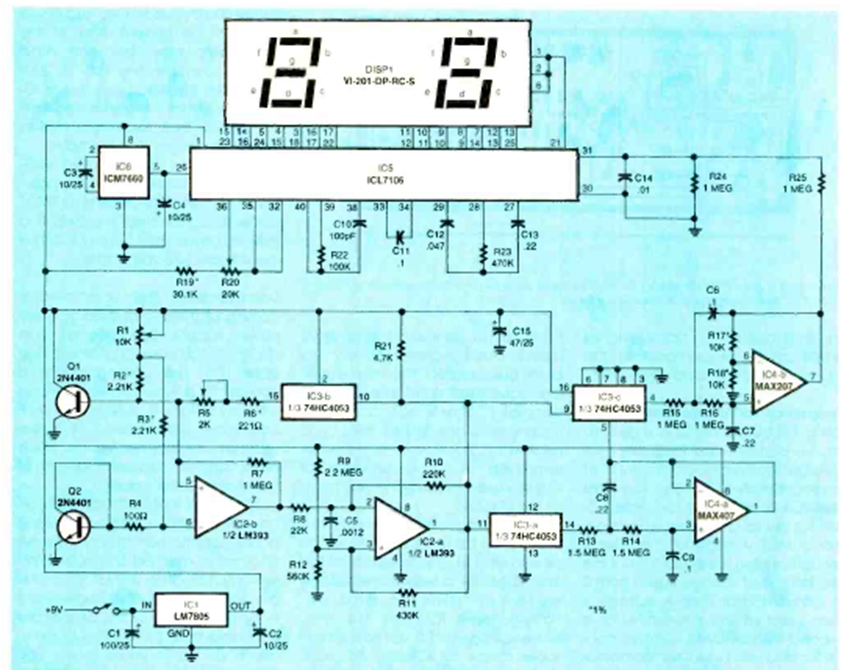

We found this circuit in an article in Electronics Now magazine from November 1997. The circuit uses two transistors to measure the temperature difference between them when one receives the wind.
| Clique na imagem para ampliar |
Digital Wind Indicator (CB26031E)
- Details
- Written by: Newton C. Braga
