Gravitational sensor (CB26124E)

Details
Written by: Newton C. Braga

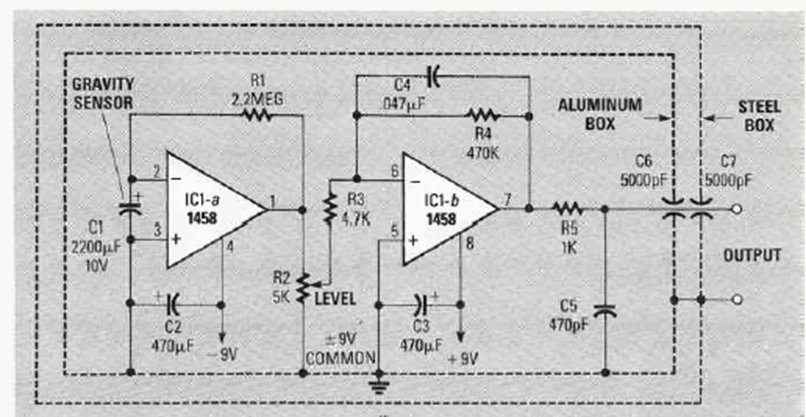

Using a capacitor as a sensor, this circuit was found in the 1989 Radio Electronics Experimenter magazine. The circuit must be assembled in a shielded box.




| Clique na imagem para ampliar |
