Alpha and Theta waves modulator (CB26155E)

Details
Written by: Newton C. Braga

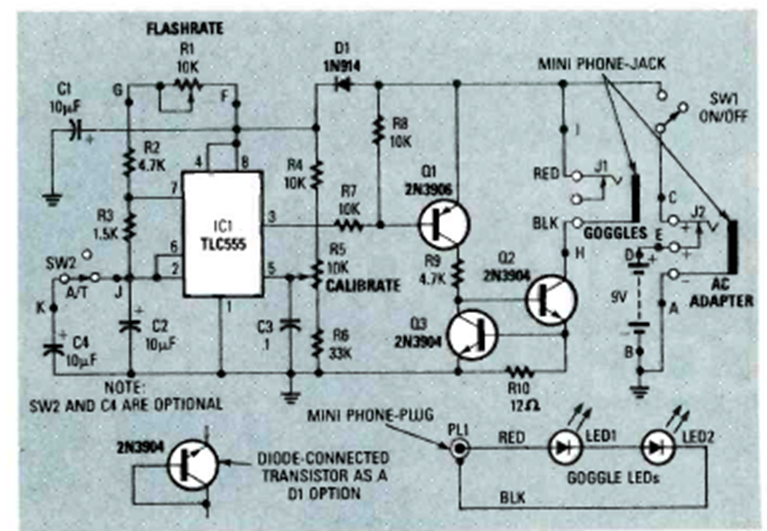

This circuit, which presents a certain danger and should be used with caution, was found in the Electronics Experimenter Handbook magazine.




| Clique na imagem para ampliar |
