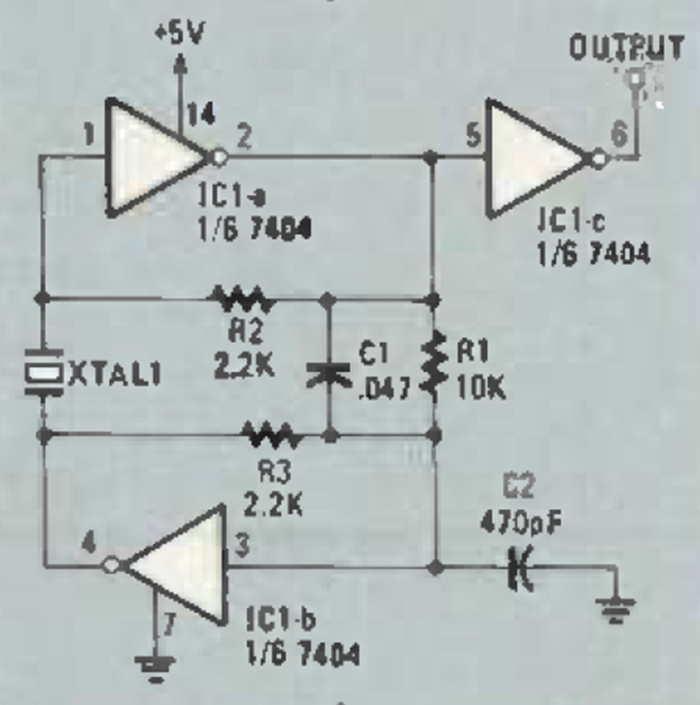

We found this circuit in December 1986, Radio Electronics magazine. It uses 3 inverters and has the frequency determined by the crystal. The power supply is 5 V.
| Clique na imagem para ampliar |
TTL Oscillator 7404 (CB25016E)
- Details
- Written by: Newton C. Braga
