Air Conditioner Cycle Controller (CB26203E)

Details
Written by: Newton C. Braga

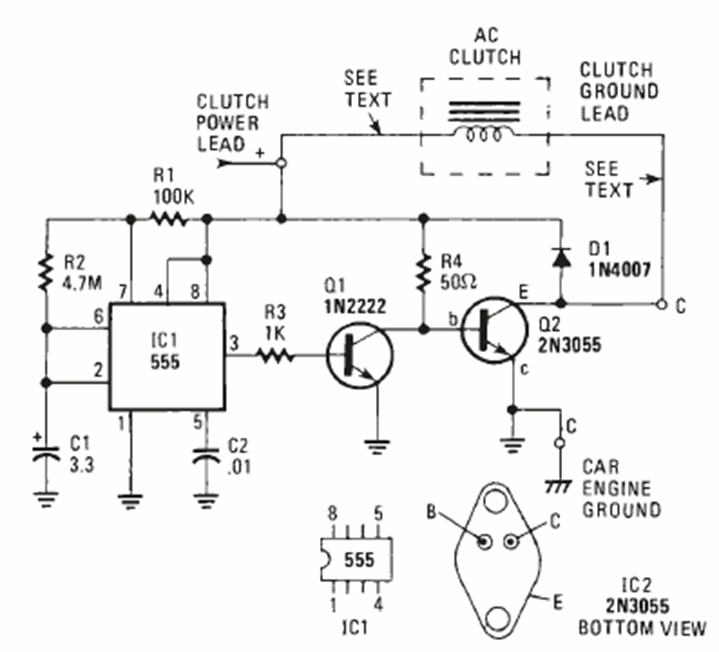

This circuit turns your air conditioner or other appliance on and off in adjustable cycles to save energy. The circuit is from a 1983 Electronics Experimenter Handbook Special projects.




| Clique na imagem para ampliar |
