Bridge amplifier (CIR22156E)

Details
Written by: Newton C. Braga

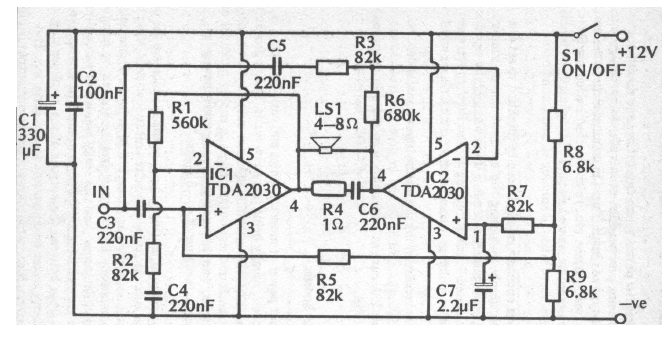

This medium power circuit is from an English publication from 1989. The integrated circuits are of types that are still obtainable. The power supply must source at least 2A.

.




| Clique na imagem para ampliar |
