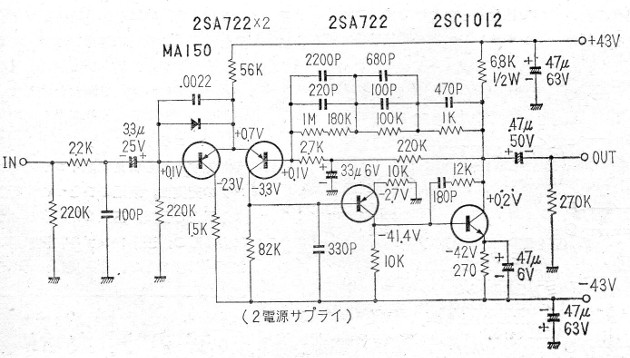

We found this circuit in documentation from the 1970s; The circuit uses Japanese transistors of the time and has a high voltage supply drawn directly from the amplifier with which it should operate. The circuit is very sensitive to noise pickup. Note the use of symmetric font.
