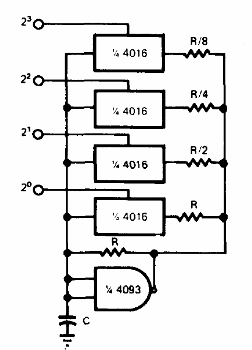

The resistors R determine the frequencies of the oscillator together with C. The circuit is from a documentation of 1976. The supply voltage can vary between 5 and 15 V and the maximum frequency is in the order of a few megahertz, depending on the voltage.
Digital Control Oscillator (CB1495E )
