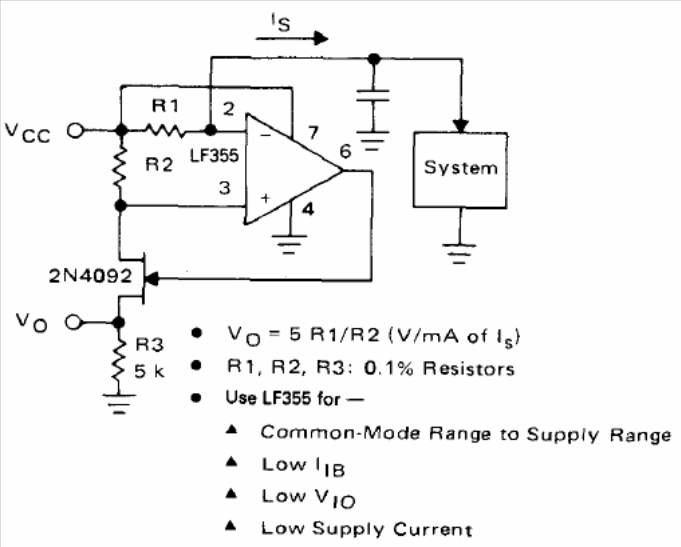

This circuit is from the 1990 Motorola Linear Databook. The integrated circuit used is the LF355, but the configuration applies to more modern operating amplifiers. R1 and R2 depend on the current intensity to be monitored.
