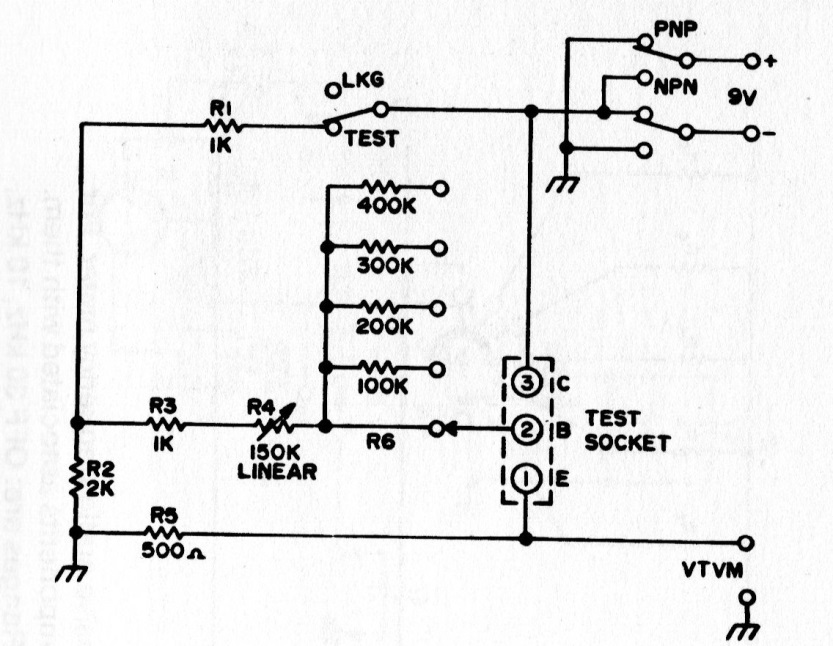

This circuit uses a common multimeter on the voltage scale to measure the beta gain of a transistor. The accuracy of the measurement depends on the accuracy of the resistors used and the setting based on known gain transistors. The circuit is from an old American documentation.
