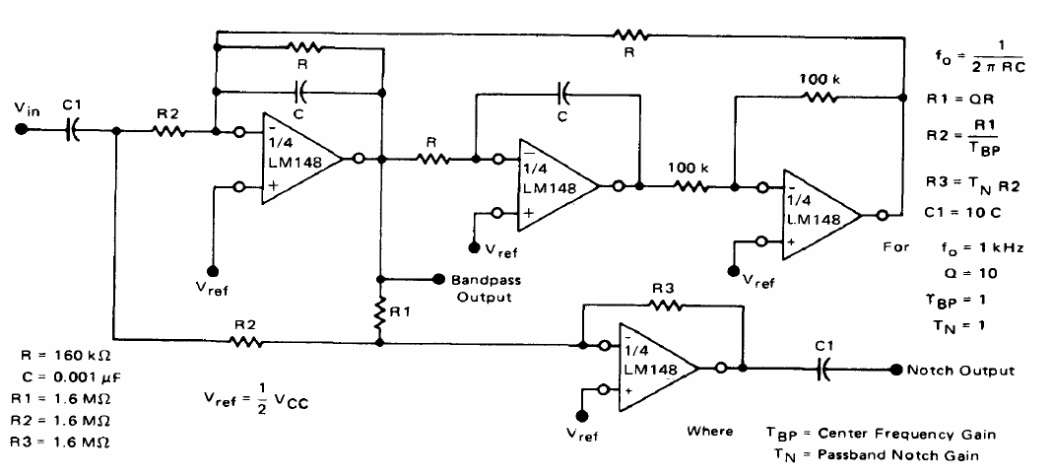

Biquad Filter LM148 (CB4012E)

Details
Written by: Newton C. Braga



    The circuit is from the 1990 Motorola Linear Databook. The circuit can be implemented with other operational amplifiers. The power supply must be symmetrical.
