72W Amplifier (CB4015E)

Details
Written by: Newton C. Braga

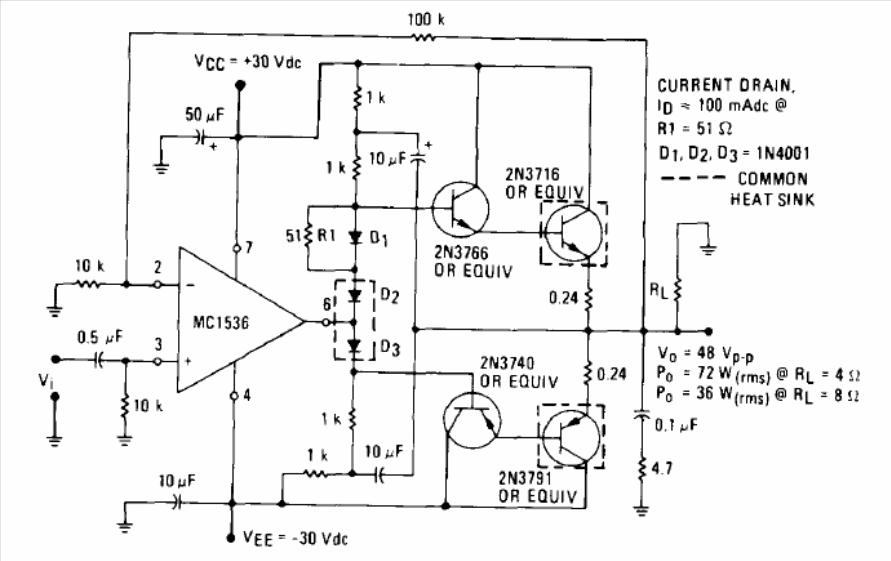

   This circuit is from Motorola's 1990 Linear Databook. The transistors allow equivalents and the output power depends on the supply voltage. The power supply must be 30 V symmetrical.




| Clique na imagem para ampliar |
