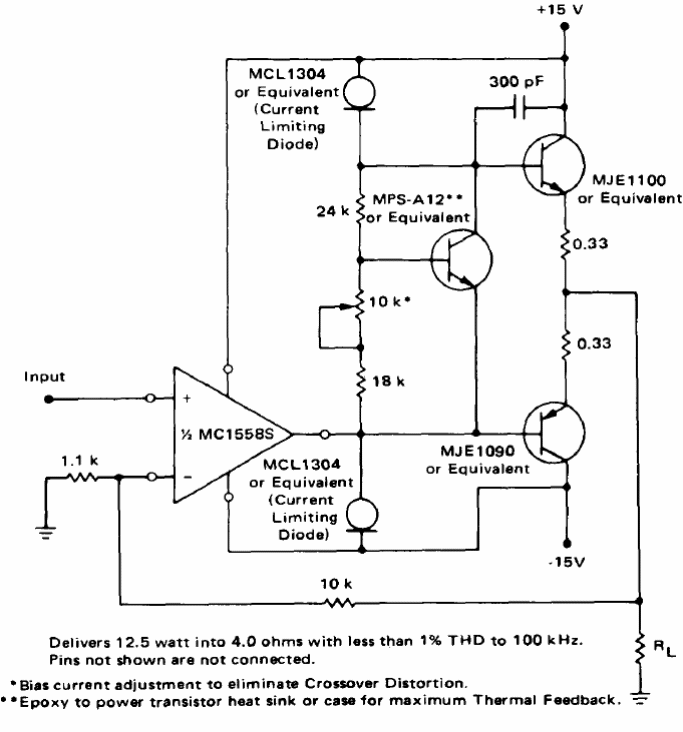

12.5 W Amplifier (CB4020E)

Details
Written by: Newton C. Braga



   This circuit was found in the 1990 Motorola Dataar Linear. We can mount it with more modern equivalent transistors. Output transistors shall be provided with heat radiators.




| Clique na imagem para ampliar |
