12,5W Amplifier with the741 (CB4023E)

Details
Written by: Newton C. Braga

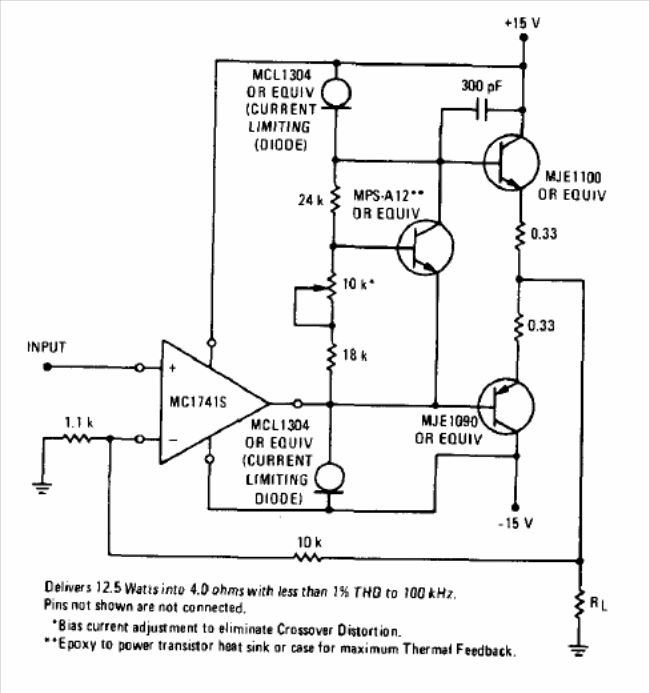

    This circuit is from the 1990 Motorola Data Databook. The circuit can be implemented with equivalent transistors. The power supply must be symmetrical.




| Clique na imagem para ampliar |
