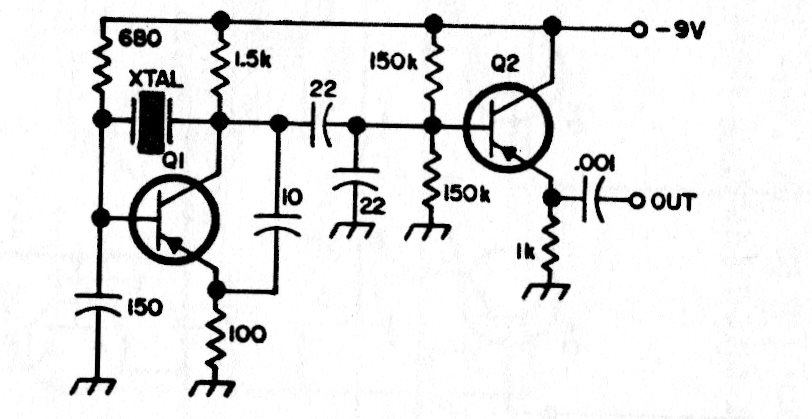

This circuit can be used to generate signals from 300 kHz to 10 MHz, depending on the crystal used. We find it in documentation from the 1980s. Its main advantage is that it does not need coils. The transistor can be 2N2222.
