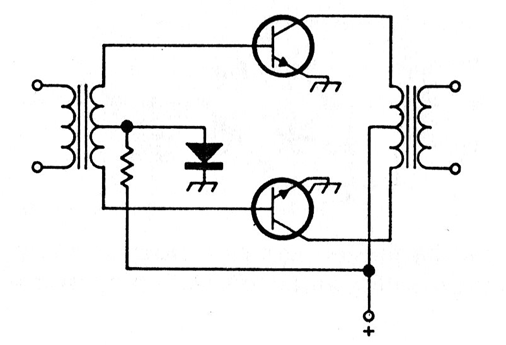

The circuit presented shows how to use a diode in temperature compensation of a push-pull output stage with transformers and transistors. The general purpose diode should be mounted in contact with the heatsink on which the transistors are located.
The circuit presented shows how to use a diode in temperature compensation of a push-pull output stage with transformers and transistors. The general purpose diode should be mounted in contact with the heatsink on which the transistors are located.
