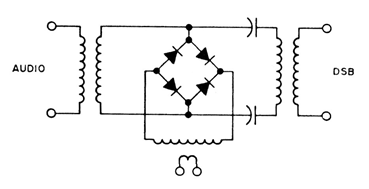

This circuit was found in a 1980s telecommunications publication. The circuit uses a diode bridge to achieve modulation. Diodes may be commonly used and transformers must have the characteristics of the circuit in which it will be used.
Balanced Modulator (CB4224E)
- Details
- Written by: Newton C. Braga
