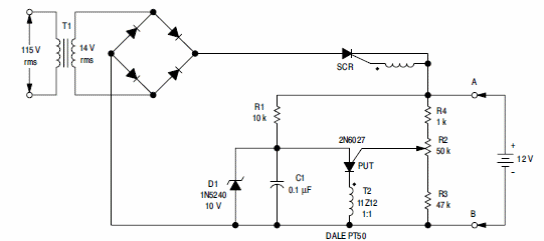

We find this automatic battery charger in an 80s ON Semiconductor circuit and application manual. Bridge diodes can be either 1N5404 and 3 or 4 A secondary current for the transformer. The SCR shall be fitted with a heat sink.
PUT Battery Charger (CB4256E)
