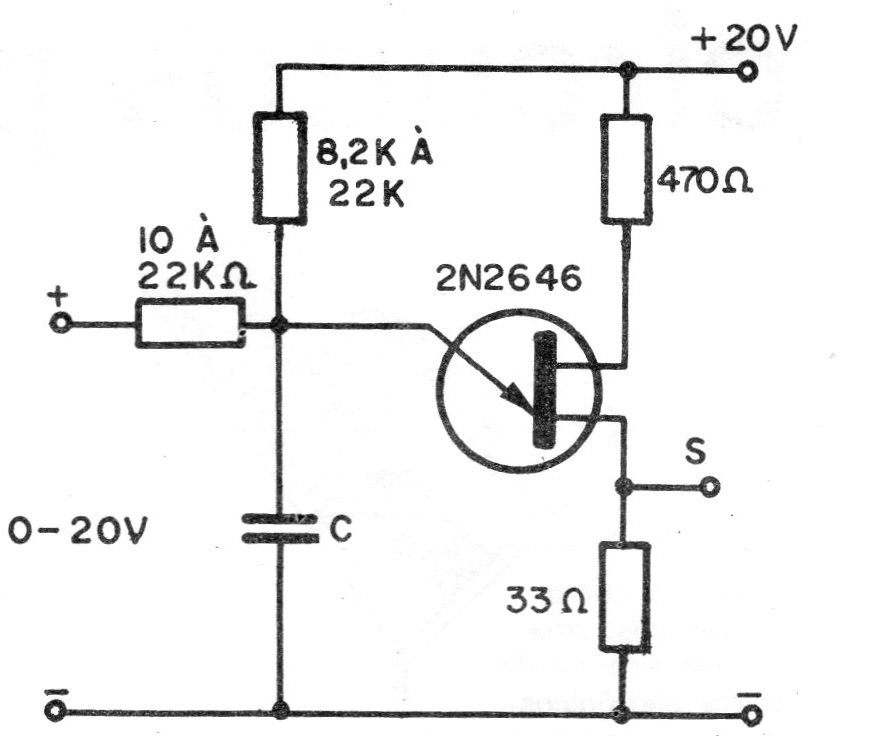

In the figure we have the way of modulating or controlling the frequency of a relaxation oscillator by an external voltage. The basic frequency in the audio range is determined by the capacitor and resistors that can be chosen depending on the application. The circuit works with voltages from 9 to 18 V.
