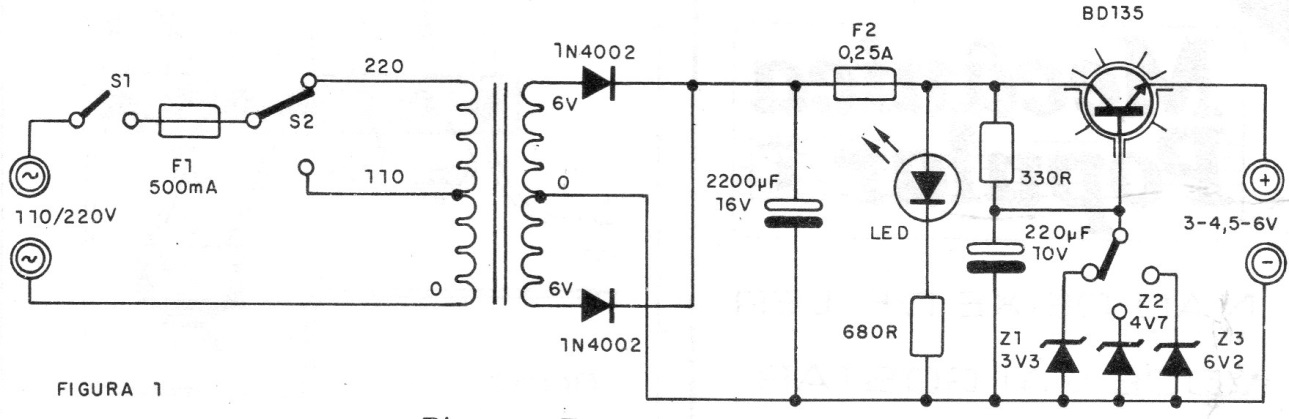

This 1986 documentation circuit provides 3, 4, 5, 6 V voltages under 350 mA for powering walkmans and similar devices using batteries. The power transistor must be equipped with a heat sink and voltage selection is made. by the zeners.
