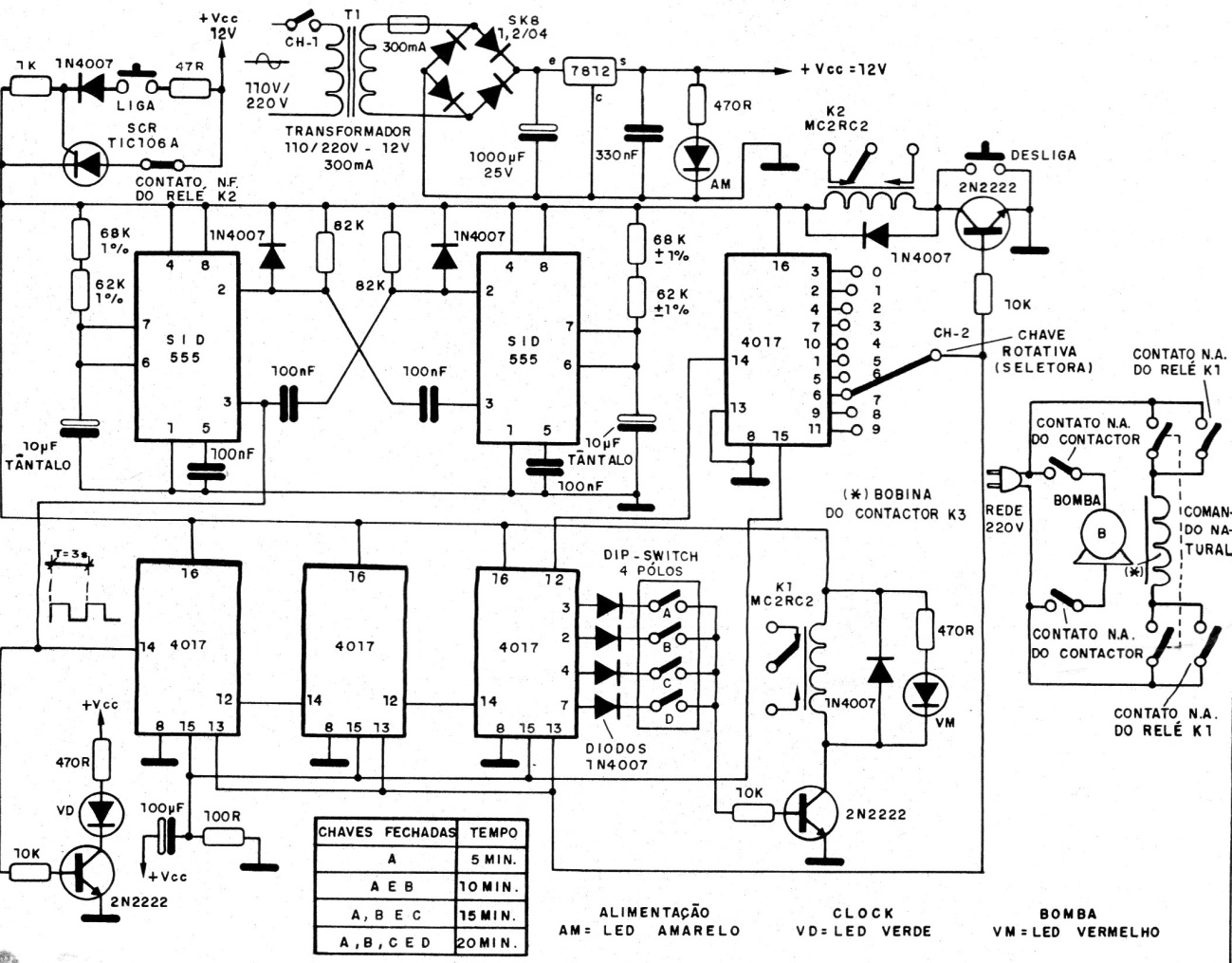

This circuit is from a 1988 documentation, but uses components quite common today. The circuit automatically triggers a water pump at 5, 10, 15 or 20 minute intervals every 50 minutes. Drive is via a relay and depends on the frequency selected by a switch.
| Clique na imagem para ampliar |
