Arbitrary Reference Inverter Amplifier LM3900 (CB4504E)

Details: Written by: Newton C. Braga

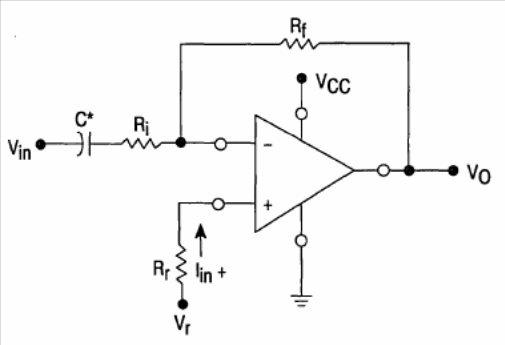

Other series amplifiers such as the MC3301, MC3401 and LM2900 can be used on this circuit. We found this gain 1 setting on Motorola's Linear Interface ICs. The power supply need not be symmetrical. Rf and Rj determine the gain.
