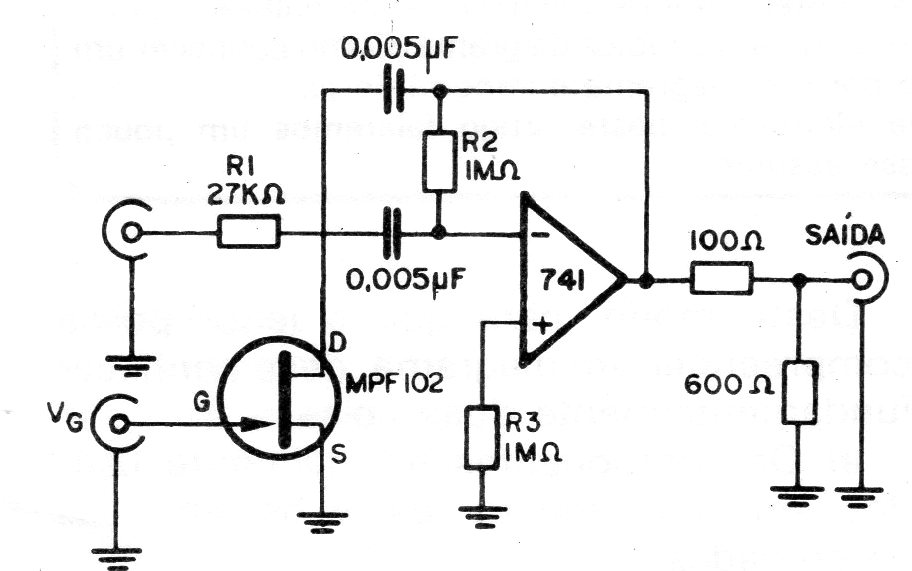

This interesting bandpass filter using an operational amplifier 741 has its cutoff frequency determined by the input voltage applied. For the indicated filter, the frequency may vary from 1 kHz to 5 kHz, but components may be changed for operation at other frequencies. The power supply can be between 6 and 15 V and must be symmetrical.
