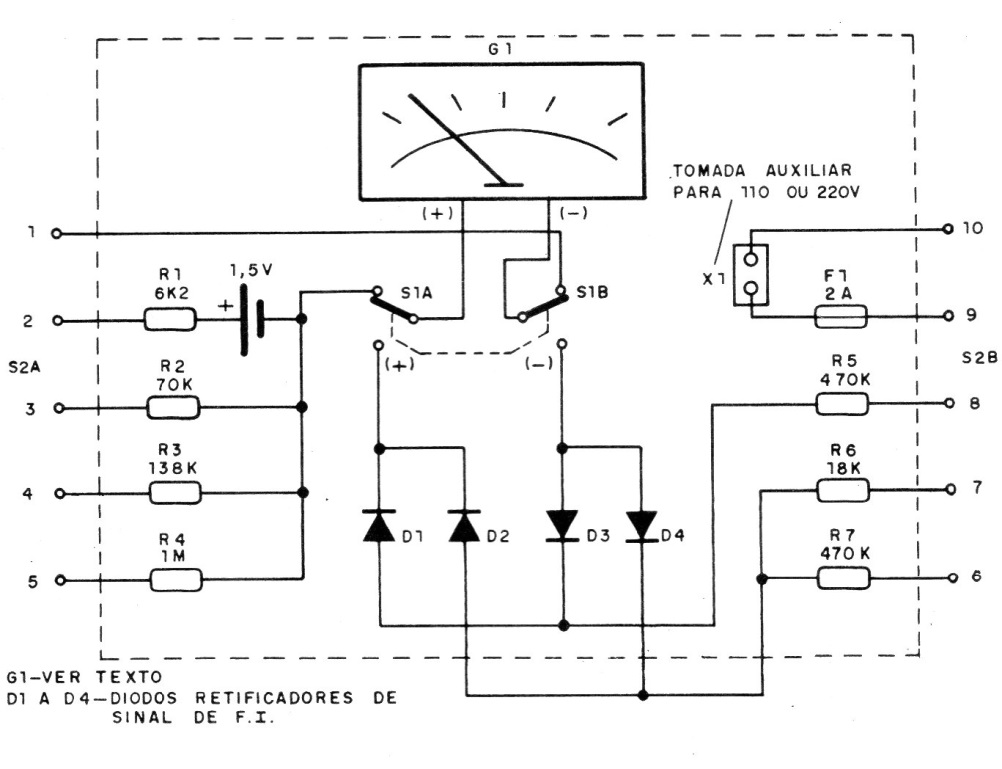

This simple multimeter takes advantage of the low cost common galvanometer of 200 uA or 1 mA and has various scales. Accuracy is determined by the components used and the power for the resistance measurement is made with a single small stack. The diodes should be germanium for higher accuracy in alternating current.
| Clique na imagem para ampliar |
