LM393 Zero Crossing Detector (CB4484E)

Details: Written by: Newton C. Braga

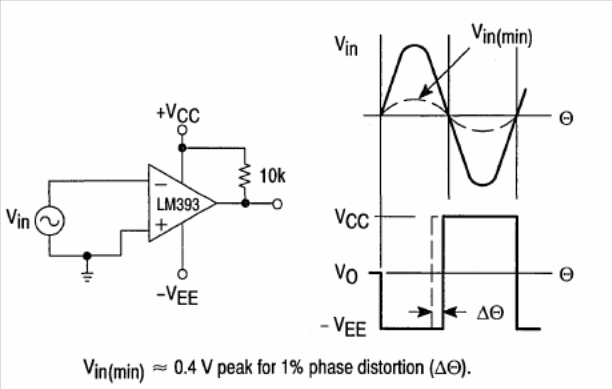

This zero crossing detector is of the 1993 Motorola Linear Interface ICs. The source is symmetrical and next to the diagram is given the behavior of the circuit in graph form.
