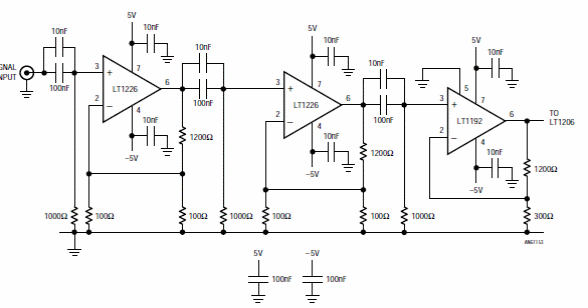

We find this circuit in the manual of the used integrated circuits. The manual is from Linear Technology of the 1990s. The power supply must be symmetrical and uncoupled with 100 nF ceramic capacitors. The input impedance is too high and the gain is 100 000.
