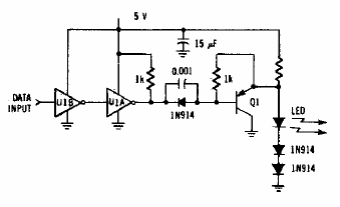

This circuit for light data transmission (visible or IR) has a maximum speed of 1 Mbps and can be used as a shield. The circuit must be powered by 5 V and lower voltage logic can also be experienced. Q1 can be a BD136 and the no-named resistor depends on the desired current on the emitting LED.
