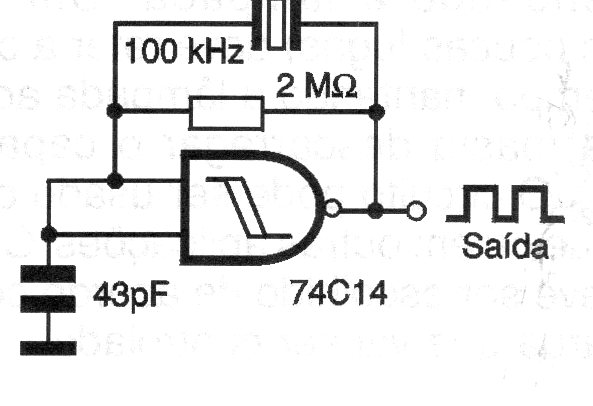

100 kHz Crystal Oscillator (CB4853E)

Details
Written by: Newton C. Braga



     This configuration often addressed on this site is from a 2000 documentation. The circuit can be powered with 3 to 12 V voltages and the 43 pF capacitor can be replaced with the nearest commercial value which is 47 pF.
