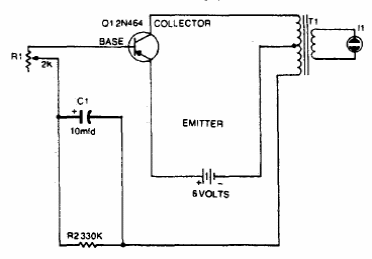

This circuit appears in similar versions elsewhere on this site. The transformer is 110 V or 220 V input and 5 to 12 V output with current up to 250 mA. The transistor can be a BD136. R1 adjusts the frequency.
Neon pulser (CB5208E)
- Details
- Written by: Newton C. Braga
