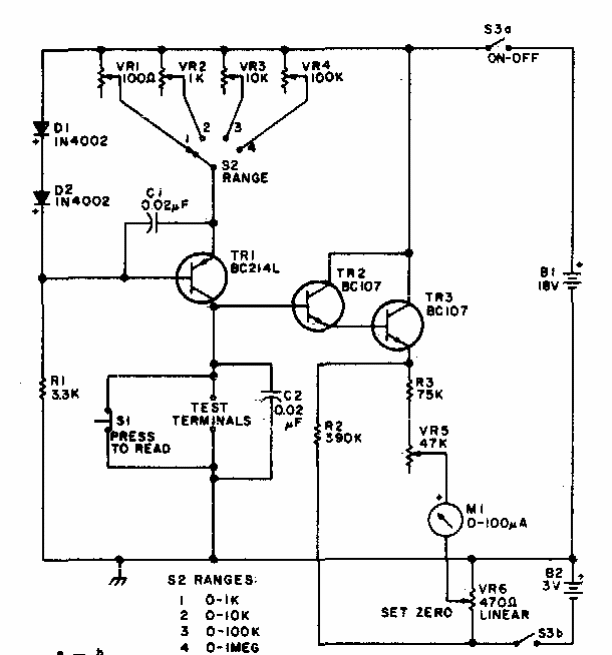

    Similar circuits can be found on this site. This is from an 80's American documentation. The transistors may be the BC548 and the instrument may be replaced by a multimeter at the lowest current range. The circuit consists of a constant current source.
