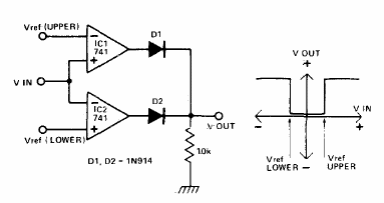

This conventional window comparator configuration was found in an old documentation. It is valid for other operational that must be powered by symmetrical power source. Diodes are commonly used.
Window Comparator 741 (CB5076E)
- Details
- Written by: Newton C. Braga
