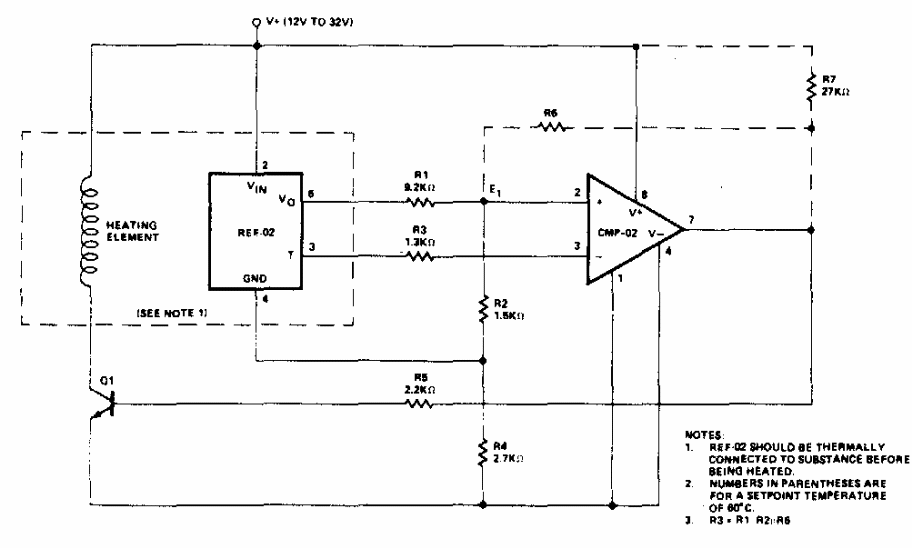

We find this circuit in an American 80's documentation. It makes use of IC sensor which is mounted with thermal coupling with the load (a heating element). The integrated circuit admits equivalent and Q1 must be in accordance with the controlled load.
