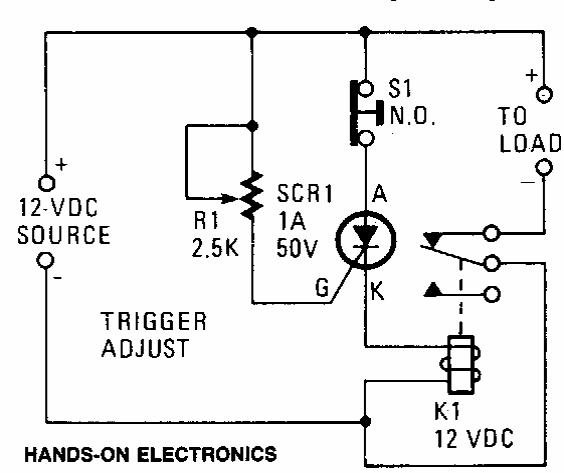

This simple circuit that interrupts the supply of a 12 V load in the event of an overvoltage was found in an 80's Hands On. All components are common types and the trigger point is set in a trimpot.
Overvoltage Protection Circuit (CB6076E)
- Details
- Written by: Newton C. Braga
