Regulated Inverter (CB5144E)

Details
Written by: Newton C. Braga

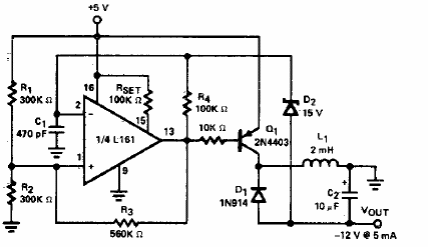

    This DC / DC converter was found in an American 1980s documentation. It provides a negative regulated output from a positive voltage. The operational can be replaced by equivalent. The operating frequency is 20 kHz.
