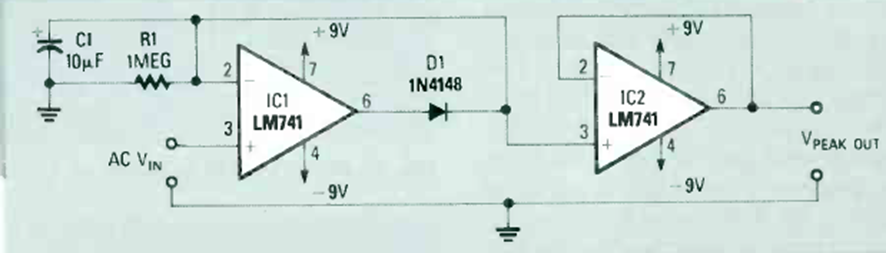

LM741 Buffered Peak Detector (CB25219E)

Details
Written by: Newton C. Braga



This circuit with the LM741 operational amplifier can be applied to other operational amplifiers. We found it in the September 1989 Radio Electronics magazine.




| Clique na imagem para ampliar |
