Isolated AC Switch with Triac (CB25867E)

Details
Written by: Newton C. Braga

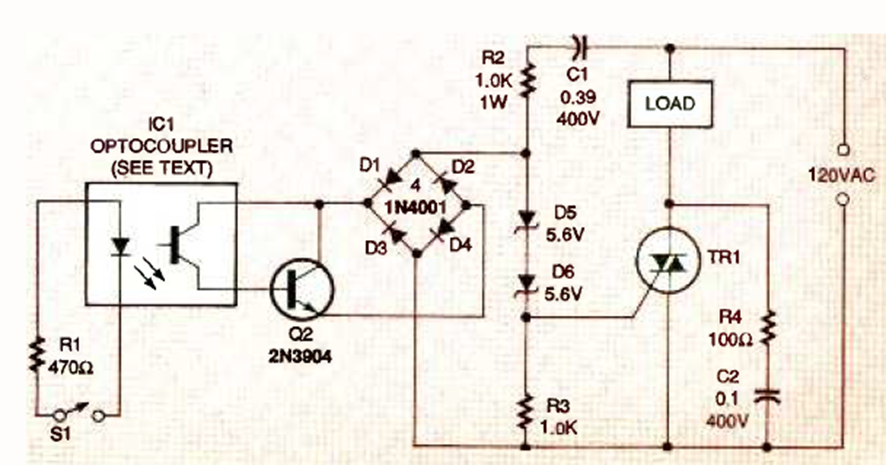

This high-power shield is isolated from the control. The circuit was found in the June 1995 Electronics Now magazine. The Triac must be equipped with a heat sink.
