Telephone Relay (CB25234E)

Details
Written by: Newton C. Braga

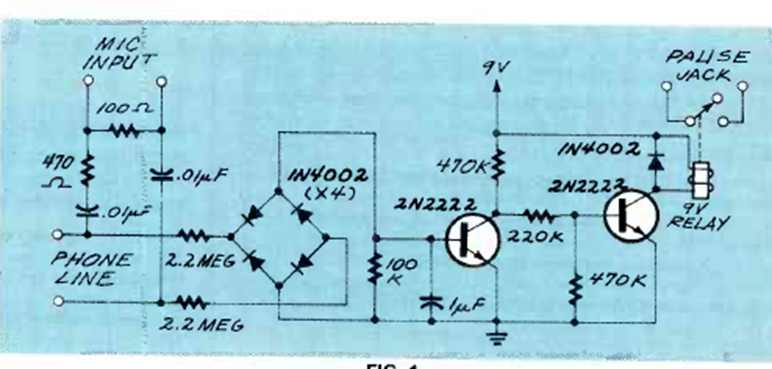

This circuit was found in the October 1989 issue of Radio Electronics magazine. It drives an auxiliary relay with the call signal for a possible louder bell.
