Operational with 1 A output (CB25183E)
- Details
- Written by: Newton C. Braga

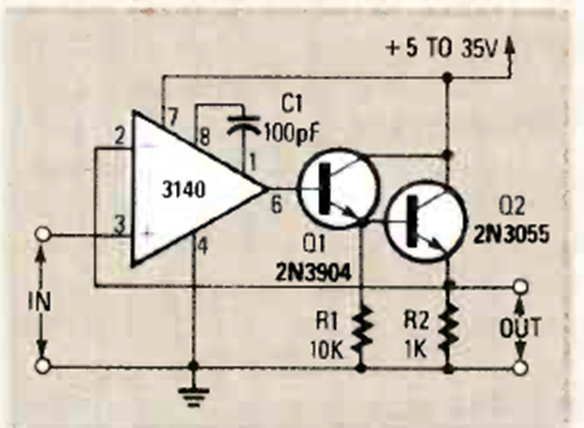

The figure shows how to add a Darlington stage to an operational amplifier in order to obtain a current of up to 1 A. The 2N3055 must be equipped with a heatsink.
