Voltage Controlled Resistor (CB25150E)

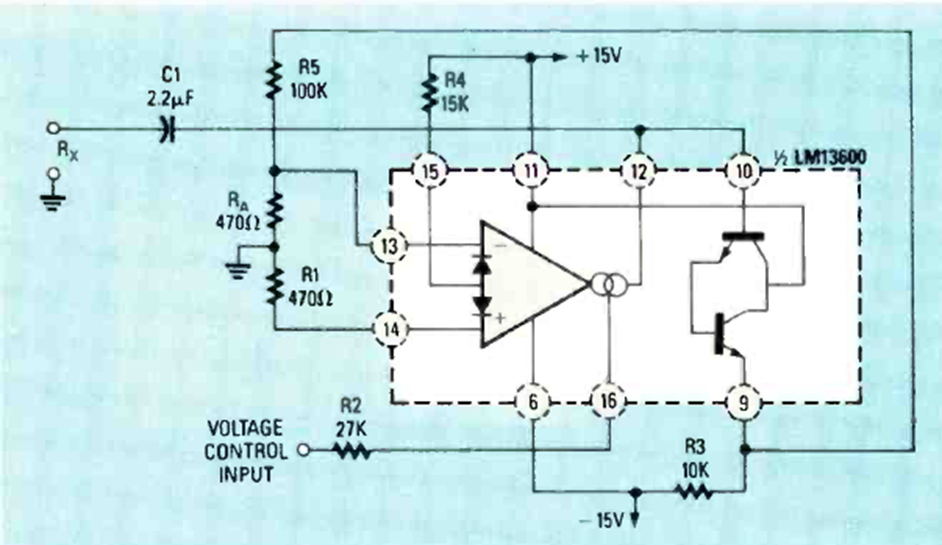

This circuit behaves as a voltage controlled resistor and can serve as a small load. The circuit is from a Radio Electronics from July 1988.
