Equivalent circuit LM381 (CB25270E)

Details
Written by: Newton C. Braga

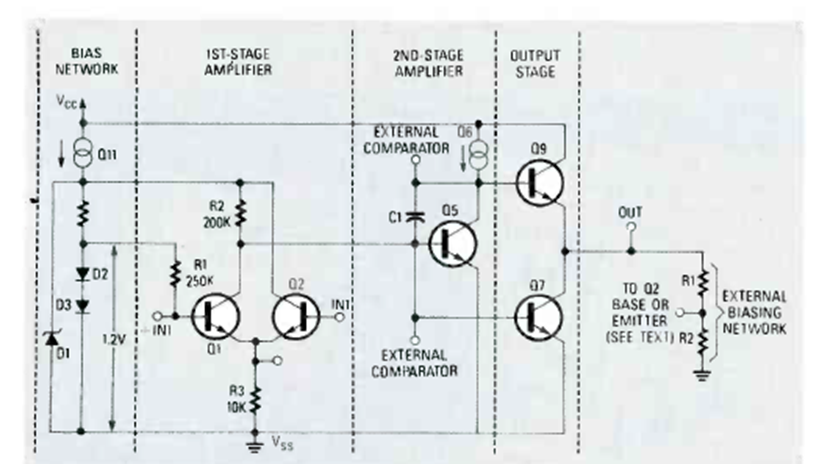

The figure shows the equivalent circuit for the LM381 audio preamplifier IC. The circuit was found in the February 1990 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
