Latching Photo Sensor (CB25476E)

Details
Written by: Newton C. Braga

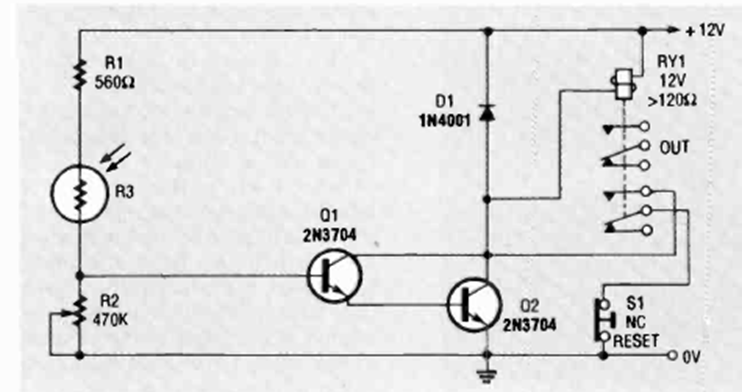

This simple sensitive circuit was suggested in a July 1992 Radio Electronics issue. The relay is a double-contact changeover relay. Sensitivity adjustment is made at R2.
