IR Remote Control Transmitter (CB25784E)

Details
Written by: Newton C. Braga

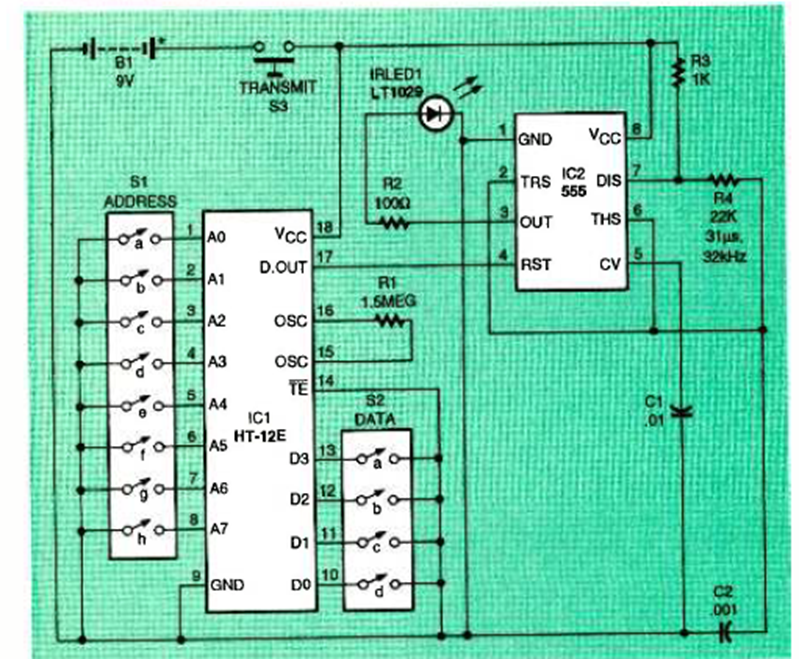

This old 4-channel circuit was found in the December 1994 Electronics Now magazine. The circuit uses a 556 as a modulator. Note the code programming key.
