Heating Element Control with NTC (CB25878E)

Details: Written by: Newton C. Braga

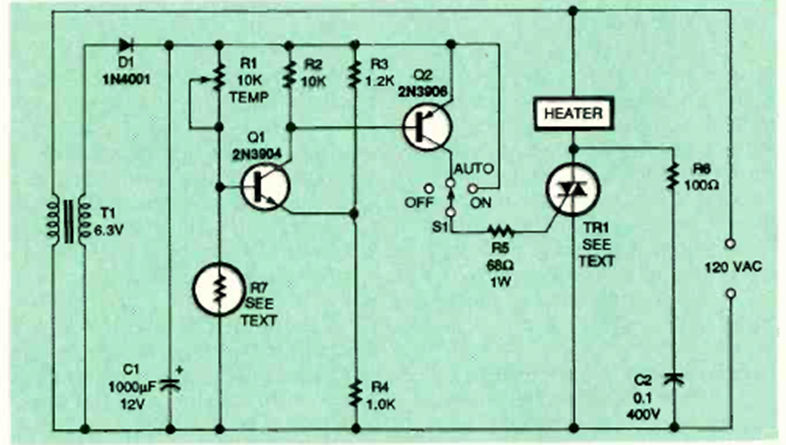

This circuit was obtained from Electronics Now magazine, July 1995. The triac depends on the heating element current, and the sensor will determine the adjustment potentiometer.

| Clique na imagem para ampliar |
