FM Antenna Booster (CB25707E)

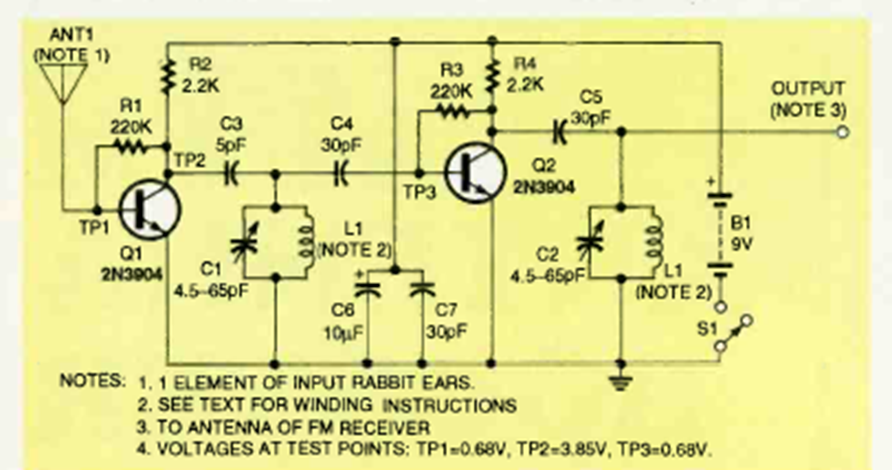

This tunable circuit was found in the May 1994 issue of Electronics Now magazine. The circuit has two amplification stages and excellent gain.

| Clique na imagem para ampliar |

NAND function with a transistor III (CB19884E)
This is a very simple configuration of NAND or NO-AND function with two general-purpose...
Tachometer with Direction of Rotation Indicator (CB11572E)
The circuit presented is from an old magazine having been translated and published in a national...
VCO CMOS 4049 (CB24858E)
This is a simple voltage-controlled oscillator using the 4049. The base frequency is given by C1....
