Pierce Oscillator with Crystal (CB25556E)

Details
Written by: Newton C. Braga

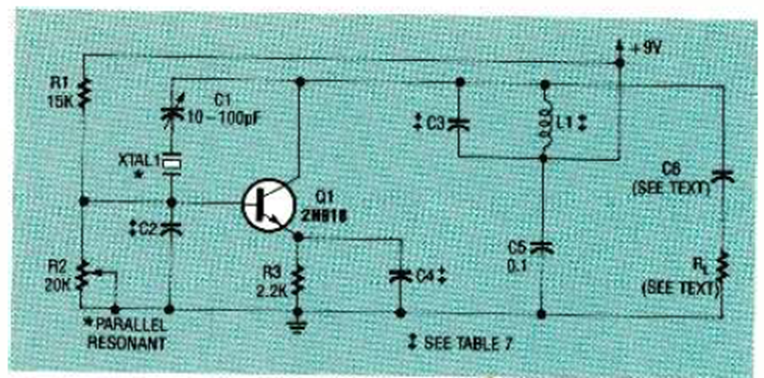

This circuit uses a parallel resonant crystal to control the frequency. The circuit is from Radio Electronics magazine, February 1993. Equivalent transistors can be used.




| Clique na imagem para ampliar |
