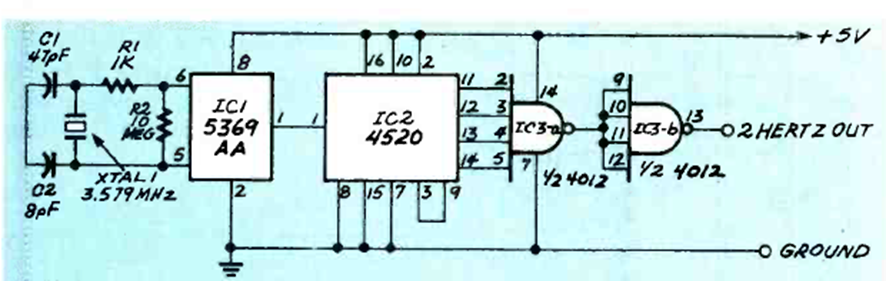

2 Hz Generator (CB25777E)

This CMNOS crystal-based circuit generates a 2 Hz signal. It was found in the October 1994 issue of Electronics Now. The output signal is square.
