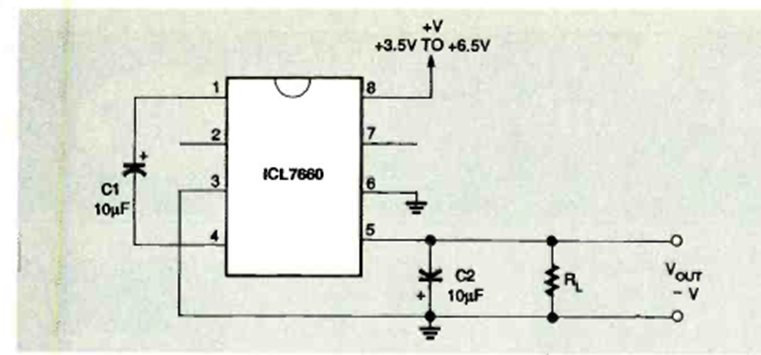

This negative bias circuit provides negative voltages from 3.5 to 6.5 V sources. The circuit was found in the April 1995 issue of Electronics Now magazine.
| Clique na imagem para ampliar |
ICL7860 Low Negative Voltage Generator (CB25845E)
- Details
- Written by: Newton C. Braga
