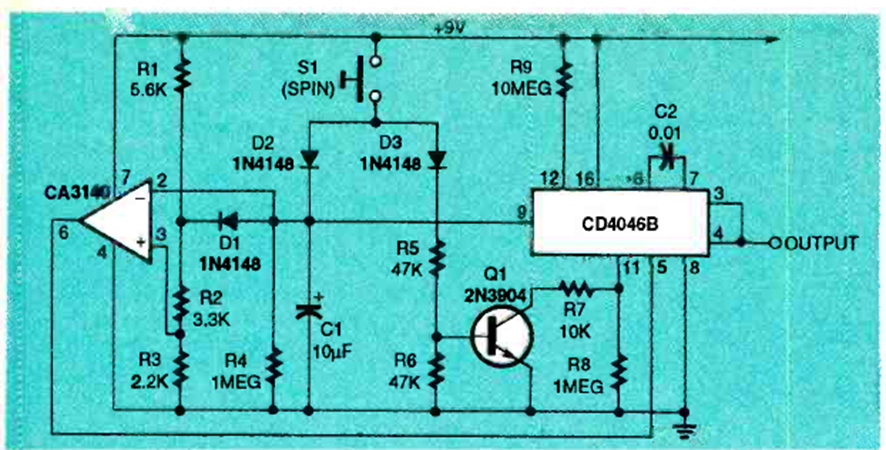

Using a 4046 PLL, which is uncommon today, this circuit was found in the October 1994 issue of Electronics Now magazine. The circuit can be modified by changing the capacitor.
| Clique na imagem para ampliar |
4046 Decay Circuit (CB25769E)
