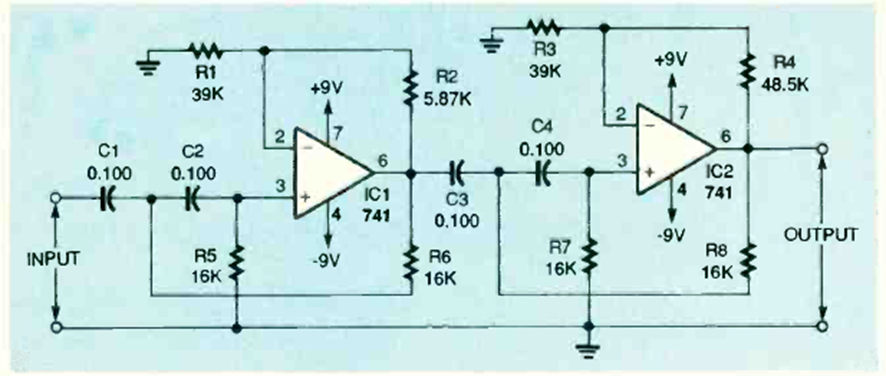

100 Hz Fourth Order High Pass Filter (CB25819E)

Details
Written by: Newton C. Braga



This circuit was taken from an article in Electronics Now magazine in February 1995. The power supply must be dual and other operational amplifier can be used.
