20 LED voltmeter in second version (CB25458E)

Details
Written by: Newton C. Braga

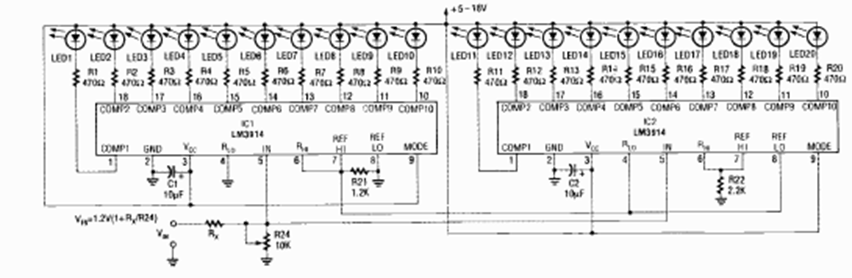

This circuit is an alternative to the previous circuit. We found it in the same article in the Radio Electronics magazine of March 1992. The integrated circuits are the LM3914.




| Clique na imagem para ampliar |
